IR to RS232 Codes Output Table for RCV-5000 Infrared Receiver

KOTI-816NR Video Multiplexer
(SC-45 Remote Control Version)

Celadon Inc.
RCV-5000  IR to RS-232 Output Table
Device: KOTI-816NR Video Multiplexer
Infrared Remote Control: Celadon, SC-45
Infrared Code Format: NEC - Device ID: FF00
Infrared Receiver: Celadon RCV-5000 Infrared to RS-232 Receiver
RCV-5000 Data File: koti3_r.hex
Data - 1200 baud, 8, O, 1, ASCII OUTPUT
Switch Pins 2 & 3
KOTI Command SC-45 ASCII Output String
Camera 1 10  /01
Camera 2 11  /02
Camera 3 12  /03
Camera 4 13  /04
Camera 5 14  /05
Camera 6 15  /06
Camera 7 16  /07
Camera 8 17  /08
Camera 9 18  /09
Camera 10 19  /10
Camera 11 20  /11
Camera 12 21  /12
Camera 13 22  /13
Camera 14 23  /14
Camera 15 24  /15
Camera 16 25  /16
Quad 26  /SF/01
9-Way 27  /SF/05
16-Way 28  /SF/08
Sequence 29  /SQ
Shift 30  /SF
Celadon, Inc.
500 Tamal Plaza, Suite 520
Corte Madera, CA 94925
Tel: (415) 472-1177
Fax: (415) 472-1179
sales@oem-remote-control-manufacturer.com

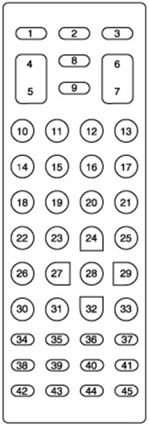

SC-45 Remote Numbered Key Drawing
